Sheet metal and architectural metal

Metal panel lifter rental for sheet metal trades.

ACM rainscreen, standing seam, and custom fabricated facade panels. The pads hold the face without gloves, straps, or a crew trying not to flex it.

Get a quote (855) 677-7368

MachineSmartlift SL609 HLE RT

Rated1,320 lb arm in, 330 lb at full reach

CrewOne operator, one person guiding

RampIncluded, just ask

DeliveryWe drop off and pick up

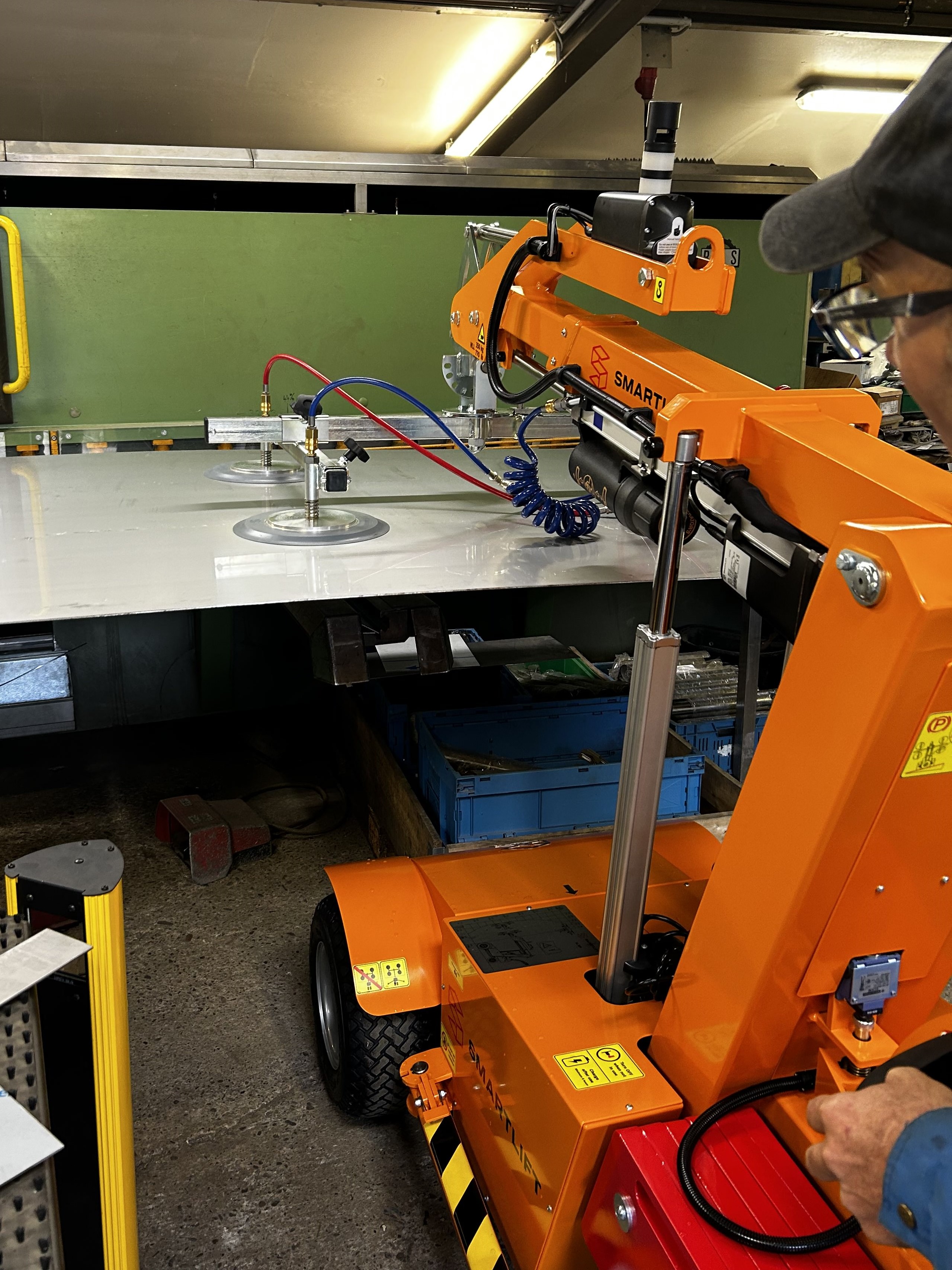

Smartlift SL609 HLE RT vacuum lifter with four suction pads on a lifting frame

The face is the whole product.

A scratched panel is not a repair, it is a reorder with a lead time attached, and the schedule does not care whose fault it was.

What changes.

What the machine takes off your crew. You know your own rates, so the math is yours.

A single large panelA crew carrying it by the edges. With the machine: one operator runs the lift, with a second person guiding the panel.
A week of facadeThe same carry at every panel, all week. With the machine: the same machine at every panel, set after set.
A scratched faceA reorder, and a lead time you cannot compress. With the machine: pads hold the face, no straps, no gloves.
A flexed panelOil-canning that shows on the finished wall. With the machine: even support across the pad frame.

Put your own crew rate against those rows. The reorder line is usually the one that decides it, because a replacement panel arrives on the manufacturer's schedule, not yours.

From the truck to the facade.

Four places the panel stops being at risk.

ACM rainscreen
Large-format composite panels off the crate and onto the wall without a hand ever touching the finished face.
Standing seam
Long runs staged and lifted without the flex that shows up later as oil-canning across a finished elevation.
Custom fabricated facades
One-off panels where a replacement is a fabrication run, not a shelf item.
Mechanical housings
Screen walls and equipment enclosures, set at height with the fork attachment.

What the pads hold.

Smooth, non-porous, and rigid enough not to flex. Most architectural metal qualifies.

Composite panels: ACM and MCM in standard and large format.
Standing seam: Prefinished runs, staged and placed.
Flat stock and plate: Smooth sheet where the finish is the deliverable.
Perforated and textured: Depends on the pattern. Send a photo and we will confirm the seal.

If your piece is over 1,320 lb close in, over 330 lb at full reach, or has unusual geometry, send the specs and a photo. We confirm the fit before you book, not after.

The unit you’ll get.

The Smartlift SL609 HLE RT. The weight of your heaviest piece and how far it has to reach decide whether it fits. If it does not, we can source a larger unit for heavier lifts.

Smartlift

SL609 HLE RT

Up to1,320lb

Lifting height: 13 ft 11 in
Arm extension: 5 ft 3 in, two-stage

At full reach: 330 lb
Series: Outdoor
Powered rotation: Yes, that’s the RT
Placement: Tilt, rotate, 4 in side shift
Memory positions: Yes, for repeat installs
Drive: Four wheels, front-wheel drive
Runtime: A full workday, charges on 110V
Suction pads: Four 16 in pads, dual circuit
Width to drive through: 32.7 in
Width to work: 5 ft 8 in, legs down
Ramp: Included, just ask

Drives through a standard 36 inch doorway with the legs up. It needs 5 ft 8 in to set the legs down and work, so measure the room as well as the door.

See the rental page and what’s included

Put one on your job.

Takes a minute. We answer within two hours, 9 to 5, seven days, and quote as soon as we have your job details.

First name

Last name

Company

Phone

Jobsite zip

When do you need it?

Which machine

What are you lifting?

The weight and size of your heaviest piece is what decides the machine. Tell us that and we will pick for you.

Or call (855) 677-7368

We use this to quote your job. We do not sell your information and we do not send newsletters.

Sheet metal questions.

The five that come up on nearly every call.

Will the pads mark a prefinished face?

The pads seal against a clean, smooth face without abrasion, which is why they are used on architectural metal. No straps and no edge clamps. If the finish is soft or unusual, send a photo and we will check first.

What about perforated panels?

It depends on the pattern. A perforated face may not hold a vacuum. Send a photo or the spec and we will tell you before you book, not after.

How heavy a panel can it take?

1,320 lb with the arm in, 330 lb at full extension. Most architectural metal is well inside that, so reach usually matters more than weight.

Can it set panels at height?

Up to 13 ft 11 in with the pads. Capacity drops from 1,320 lb close in to 330 lb at full reach. For equipment housings and screen walls the fork goes on, and the fork's own 1,100 lb rating applies. Give us the elevation and the panel weight and we will confirm the reach.

Do I need a licensed operator?

No. There is no license for a Smartlift. Our driver walks your crew through the controls on drop-off. Anyone who runs it must be 18 or older and have read the manual.
