Glaziers, glass and window companies

Glass, set by one person.

Storefront, curtain wall, hurricane-impact units, and residential replacement. The pads hold what six pairs of hands used to, and they do not get tired at four in the afternoon.

Get a quote (855) 677-7368

FleetTwo units

Rated1,320 lb and 2,200 lb

OperatorOne person, by remote

RampIncluded, just ask

DeliveryWe drop off and pick up

Smartlift SL609 HLE RT vacuum lifter with four suction pads on a lifting frame

Six people around one pane.

Every one of them a chance for someone to lose their grip on a corner, and glass does not forgive that.

What changes.

In crew-hours, so you can run it against your own rate rather than ours.

One large window unitSix people, about four hours becomes One person, about one hour.
A week of storefrontSix people, all week becomes One person, plus the rental.
A cracked paneA remake, a reglaze, and a slipped opening date. With the machine: vacuum pads and a dual safety circuit.
Hurricane-impact unitsHeaviest glass on the job, carried by hand. With the machine: rated capacity, held by machine.

Run your own burdened crew rate through the first row. On one large unit that is about twenty-three crew-hours back, and impact glass is where it adds up fastest.

The question with no good answer.

A big slab is ten feet six inches long.

The stairA house landing is three to four feet deep with about six feet eight of headroom. You cannot pivot a ten-foot-six panel through it. That is geometry, not strength, and no amount of crew fixes it.
The manufacturerNeolith’s own handling manual opens by saying slabs “must be loaded, unloaded and transported by means of a forklift, bridge crane or other hoisting device.” Carrying by hand is not the approved method.
The failurePorcelain does not crack like natural stone. It shatters, and the pieces are sharp. A dropped slab is a remake and a missed date, at best.

From the truck to the opening.

Four places the carry disappears.

Storefront and entrances
Off the truck, across the sidewalk, and into the opening without a six-person handoff at the threshold.
Curtain wall
Unitized panels set at height with the arm out. We size the unit against your heaviest panel and your reach before it ships.
Hurricane-impact glass
The heaviest glass on a Florida job. Laminated impact units carried by machine instead of by shoulder.
Residential replacement
Off-road tires across a lawn, then a standard doorway. Big fixed panes into finished homes without a scratch.

What the pads hold.

Clean, non-porous glass seals reliably. Anything coated or textured, send a photo first.

Insulated glass: Double and triple glazed, standard and oversized.
Laminated impact glass: The Florida workhorse. Heavy, and exactly what this is for.
Monolithic and tempered: Storefront lites, entrances, interior partitions, shower and mirror work.
Spandrel and coated: Usually fine. Coatings vary, so we confirm the pad seal before booking.

If your piece is over 1,300 lb or has unusual geometry, send the specs and a photo. We confirm the fit before you book, not after.

The unit you’ll get.

Two on the yard. The weight of your heaviest piece decides which one goes on the truck.

Unit 01

SL609 HLE RT

Up to1,320lb

Lifting height: 13 ft 11 in
Arm extension: 5 ft 3 in, two-stage

Series: Outdoor
Powered rotation: Yes, that’s the RT
Placement: Tilt, rotate, 4 in side shift
Memory positions: Yes, for repeat installs
Drive: Four wheels, front-wheel drive
Runtime: A full workday, charges on 110V
Suction pads: Four 16 in pads, dual circuit
Width to drive through: 32.7 in
Width to work: 5 ft 8 in, legs down
Ramp: Included, just ask

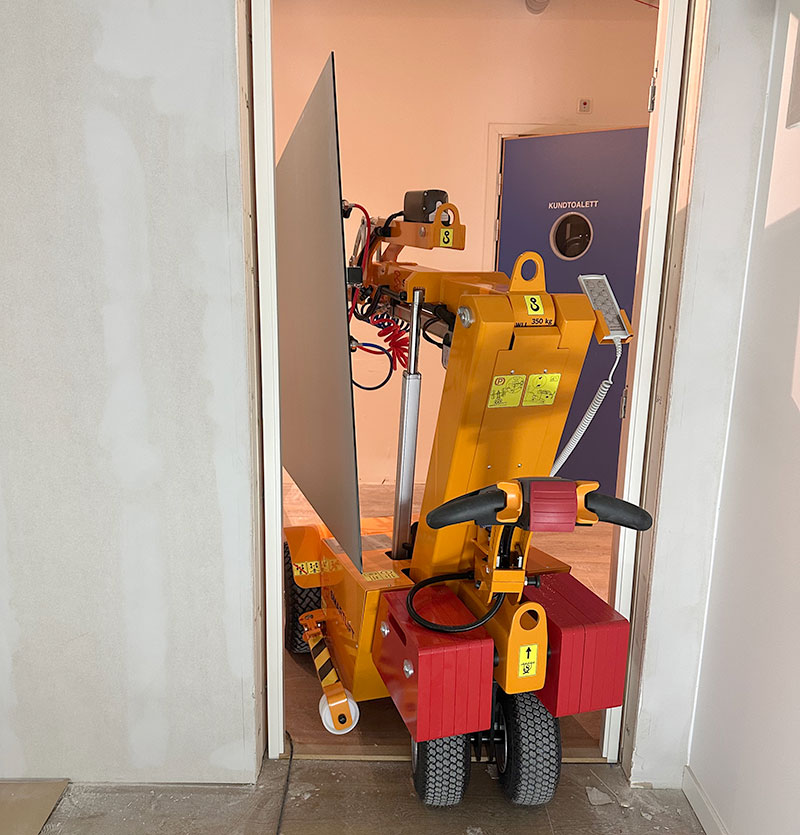

Drives through a standard 36 inch doorway with the legs up. It needs 5 ft 8 in to set the legs down and work, so measure the room as well as the door.

Unit 02

SL1009 HLE

Up to2,200lb

Lifting height: 15 ft
Arm extension: 8 ft, two-stage

Series: Outdoor
Rotation: Hydraulic, plus or minus 90°
Placement: Proportional control, 4 in side shift
Display: Battery, vacuum, and load strain
Drive: Four wheels, 3.7 mph
Runtime: Eight hours on a charge
Suction pads: Six 16 in pads
Width: 3 ft
Ramp: Included, just ask
Attachments: Ask us

More reach and more capacity. Where the 609 runs out, this keeps going.

See the full fleet and what’s included

Put one on your job.

Takes a minute. An itemized quote comes back within two hours, 9 to 5, seven days a week.

First name

Last name

Company

Phone

Jobsite zip

When do you need it?

Which unit

What are you lifting?

The weight and size of your heaviest piece is what decides the machine. Tell us that and we will pick for you.

Or call (855) 677-7368

We use this to quote your job. We do not sell your information and we do not send newsletters.

Glass and glazing questions.

The five that come up on nearly every call.

How heavy a pane can it handle?

1,320 lb with the arm in, dropping to 330 lb at full extension. Reach matters as much as weight on a glazing job, so tell us both and we will confirm the fit.

Will it seal on coated or low-E glass?

Usually. Coatings vary and a few give the pads trouble, so send a photo or the product code and we will confirm before you book.

Can it work inside a finished building?

Yes, with the wheels sorted. It is battery electric, so there are no fumes. Standard tires can mark a finished floor, so tell us when you book. Non-marking wheels are an available option.

What about setting glass at height?

Capacity drops as the arm goes out. That is true of every vacuum lifter. Give us the panel weight and the reach and we will tell you honestly whether it works.

Do I need a trained operator?

No. Our driver runs your crew through the controls on drop-off. If you can drive a pallet jack, you can run a Smartlift.
